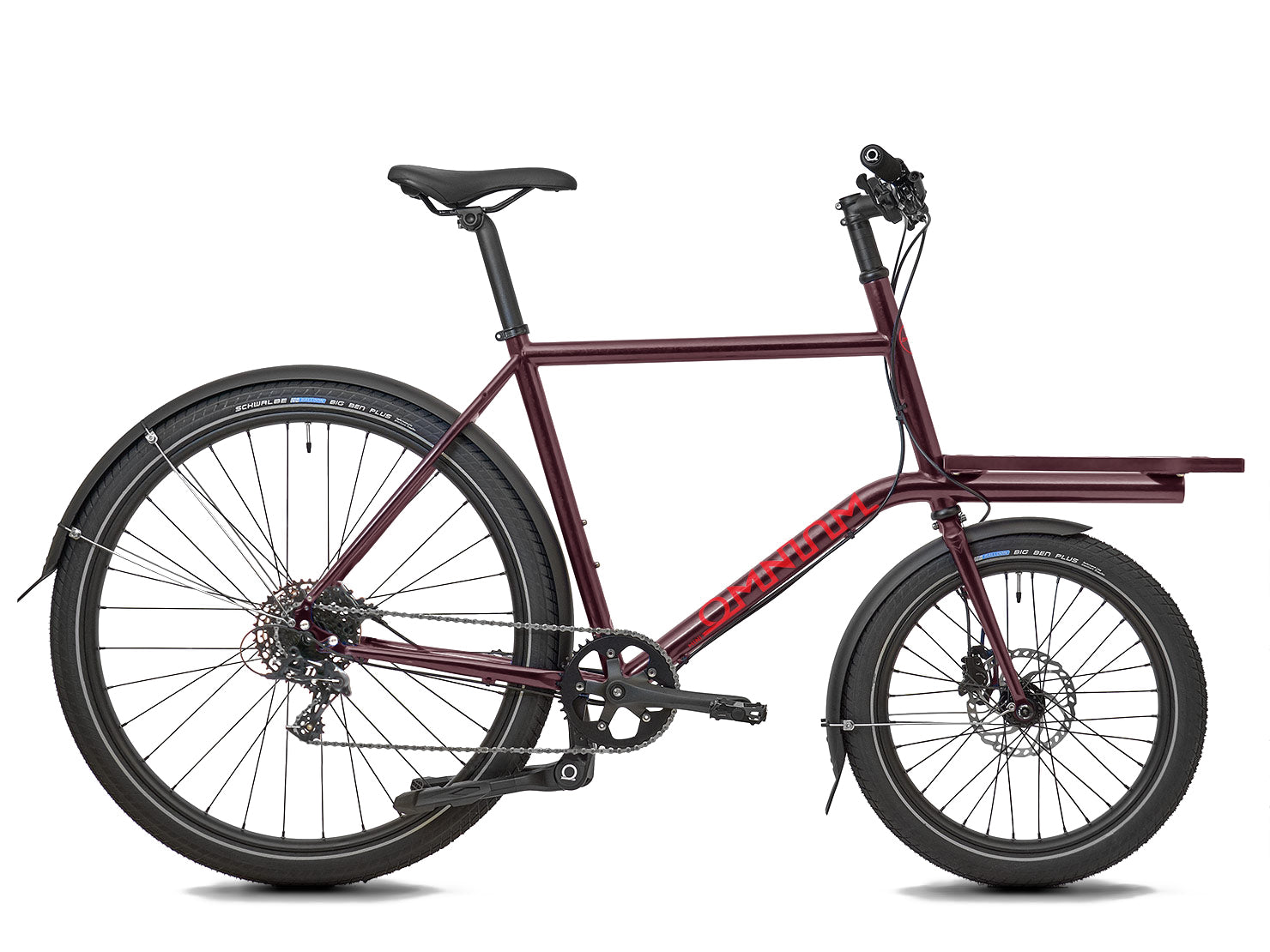

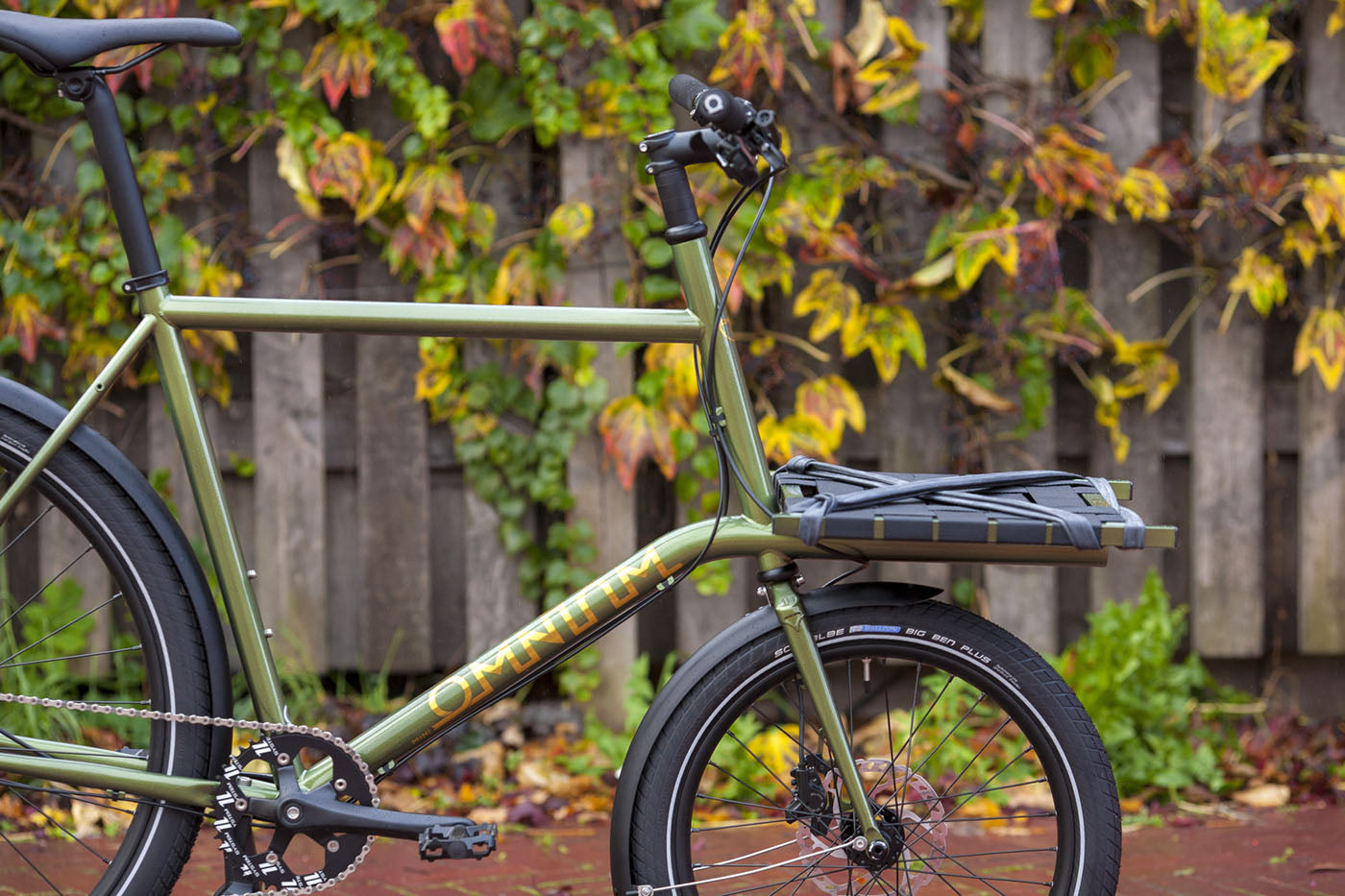

Omnium Mini V3 cargo bike
Omnium Mini V3 cargo bike
Regular price
€2.756,78
Sale price
€2.756,78
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Frame kit specifications:
| Material | Chromoly double-butted steel |
| Sizes | XS, S, M, L, XL |
| Gears | 1x rear derailleur gear system |
| Upper saddle | Ø 31.6 mm |
| Saddle necklace | Ø 34.0 mm |
| Rear wheel | TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only |
| Front wheel | 406, 15 x 100 mm spacing, disc only |
| Tyre width max. | 55mm with front / rear mudguard |
| Rear axle | 12×142, 172mm long, 19mm thread length, 1.75mm pitch |
| Front axle | 15×100, 125mm long, 17mm thread length, 1.5mm pitch |
| Wheel housing | BSA 68mm |
| Steering game | 1 1/8′′′ Ahead |
| Q-Factor | 145mm |
| Rack | 40cm x 42cm, Aluminium, +/- 1320g |
| Rack neck | M8 x 15mm |
| Weight | 18 kg (full cycle in size M) |
| Charge maximum | 125 kg (including cyclist) |
The framework kit includes:
- Framework
- Fork
- Steering games (front and rear)
- Steering rod
- Steering tube
- Saddle necklace
- Luggage carriers
- Front crossing axes
Comes with a choice of QR legs or 12 mm cross-axis and cross-axis legs.
The fork is always delivered with an axis through 15×100 whatever the choice on the insert.
Not included are steering game spacers and crutch.
Size Guide:
- XS: 1.55 to 1.65 m
- S: from 1.65 to 1.75 m
- M: 1.75 to 1.85 m
- L: from 1.85 to 1.95 m
- XL: from 1.95 to 2.05 m
Colour:
| Afternoon Blue |  |
| Forest Green |  |
| Blurple |  |
| Galaxy Black |  |
| Diablo Red |  |
| Copperhead |  |
| Glorious Grey |  |
| Intergalactic Guacamole |  |
You will find here a purchase / comparison guide Omnium.
